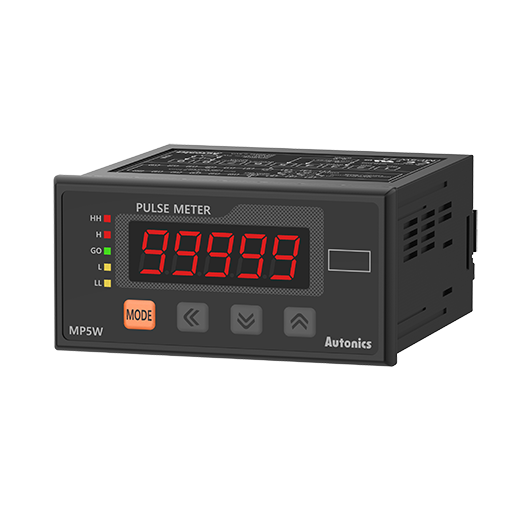

MP5W-44 - High Performance Digital Pulse Meters

Data sheet Print

Data sheet

Display method	5-digit 7-segment LED
Character height	14mm
Max. display Range	-19999 to 99999
Measurement	16 operation modes: Frequency, Revolutions, Speed, Cycle, Time, Ratio, Density, Error, Length measurement, Interval, Accumulation, Addition/Subtraction, etc.
Measurement range	0.0005Hz to 50kHz, 0.01 to max. of each time range, 0 to 99999, -19999 to 99999
Input method	Voltage input(PNP), No-voltage input(NPN)
Power supply	100-240VAC~ 50/60Hz
External Power Supply	Max. 12VDC ±10% 80mA
Output_Main Output(Comparative Value)	NPN open collector (HH, H, GO, L, LL)
Output_Sub Output(Display Value)	PV transmission (DC0-20mA, DC4-20mA)
Input frequency	·Solid state input 1: max. 50kHz (pulse width: min. 10㎲) ·Solid state input 2: max. 5kHz (pulse width: min. 100㎲) ※For F7, F8, F9, F10 operation mode, max. 1kHz (pulse width: min. 500㎲) ·Contact input: max. 45Hz (pulse width: min. 11ms)
Measurement range	·Operation mode F1, F2, F7, F8, F9, F10 : 0.0005Hz to 50kHz ·Operation mode F3, F4, F5, F6 : 0.01 to max. of each time range ·Operation mode F11, F12, F13, F16 : 0 to 99999 ·Operation mode F14, F15 : -19999 to 99999
Measurement accuracy	·Operation mode F1, F2, F7, F8, F9, F10 : F.S.±0.05%rdg±1-digit ·Operation mode F3, F4, F5, F6 : F.S.±0.01%rdg±1-digit
Prescale function	Direct input method (0.0001×10-9 to 9.9999×109)
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 334g (approx. 210g)
Protection structure	IP54 (front part, IEC standard)

※Hysteresis: Setting range will vary depending on the decimal point.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
※Sold separately: Hirose connector socket (HIF3BA-20D-2.54R)
