AT8PMN-2 - Power OFF Delay Analog Timers

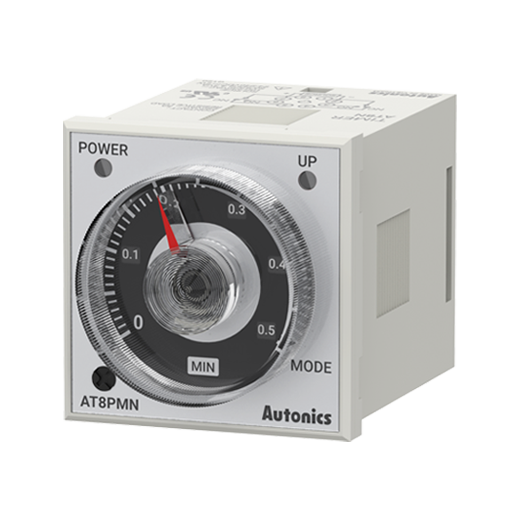

* Image may differ
AT8PMN-2
- Operation method : Time setting
- Output Operation : POWER OFF DELAY
- Time operation : POWER OFF START
- Terminal : 8-pin plug
- Power supply : 24VAC~ 50/60Hz, 24VDC @(=)
- Control output : Time-limit SPDT (1c): 2
Data sheet Print
| Operation method | Time setting |
|---|---|
| Output Operation | POWER OFF DELAY |
| Time operation | POWER OFF START |
| Terminal | 8-pin plug |
| Power supply | 24VAC~ 50/60Hz, 24VDC @(=) |
| Setting range | 0~0.5sec, 0~1sec, 0~5sec, 0~10sec, 0~0.5min, 0~1min, 0~5min, 0~10min |
| Control output | Time-limit SPDT (1c): 2 |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85%RH |
| Weight | Approx. 100g |
※Refer to time specifications for control time setting range.※The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.※The weight includes packaging. The weight in parenthesis is for unit only.※Sold separately: 8-pin socket (PG-08, PS-08(N))
3D Viewer
* You can check out the 3D Viewer by the CAD button under the product image.
PR materials
Technical dataView more
- No search results
-
- {{ result.parntsBbsCtgryNm }}
- {{ result.bbsCtgryNm }}
{{ result.nationAtchVoList[0].extension }} {{ result.nttSj }}- {{ result.parntsBbsCtgryNm }}
- {{ result.bbsCtgryNm }}
{{ result.nationAtchVoList[0].extension }} {{ result.nttSj }}
Used together with
-
PG Series
The PG series controller sockets are used with Autonics plug type control devices and provide high durability and electrical conductivity. The PG series is available in 8-pin and 11-pin sockets.
-
PS Series
The PS series controller sockets are used with Autonics plug type control devices and provide high durability and electrical conductivity. The PS series is available in 8-pin and 11-pin sockets for mounting on DIN rails or panels.
