AT8PSN - Power OFF Delay Analog Timers

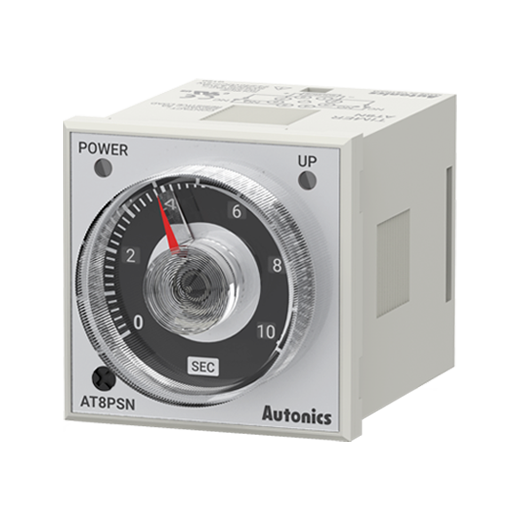

* Image may differ
AT8PSN
- Operation method : Time setting
- Output Operation : POWER OFF DELAY
- Time operation : POWER OFF START
- Terminal : 8-pin plug
- Power supply : 200-240VAC~50/60Hz
- Control output : Time-limit SPDT (1c): 2
Data sheet Print
| Operation method | Time setting |
|---|---|
| Output Operation | POWER OFF DELAY |
| Time operation | POWER OFF START |
| Terminal | 8-pin plug |
| Power supply | 200-240VAC~50/60Hz |
| Setting range | 0.05 to 0.5 sec, 0.1 to 1 sec, 0.5 to 5 sec, 1 to 10 sec |
| Control output | Time-limit SPDT (1c): 2 |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85%RH |
| Weight | Approx. 100g |
※Refer to time specifications for control time setting range.※The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.※The weight includes packaging. The weight in parenthesis is for unit only.※Sold separately: 8-pin socket (PG-08, PS-08(N))
3D Viewer
* You can check out the 3D Viewer by the CAD button under the product image.
