SPC1-35-E - Single-Phase Power Controllers
* Image may differ

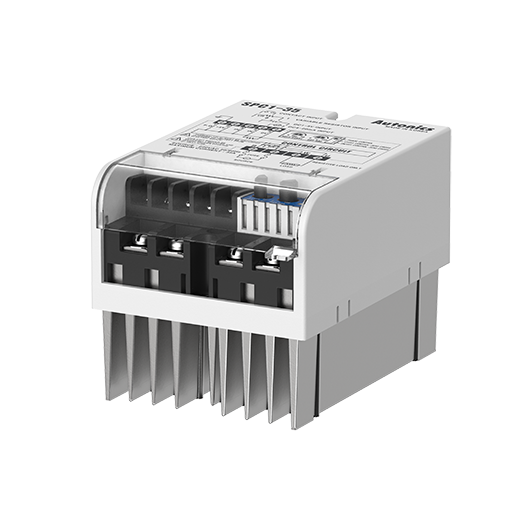

SPC1-35-E
- Control phase : Single-phase
- Control method : Phase controlCycle control (zero cross turn-on)-Control period: 0.5 sec, 2 sec, 10 secON/OFF control (zero cross turn-on)
- Power supply : 220VAC~ 50/60Hz
- Applied load : Resistance load(min. load: over 5% of rated current)
- Rated load voltage : 220VAC~
- Ambient temperature : 0~50℃
Data sheet Print
| Control phase | Single-phase |
|---|---|
| Control method | Phase controlCycle control (zero cross turn-on)-Control period: 0.5 sec, 2 sec, 10 secON/OFF control (zero cross turn-on) |
| Power supply | 220VAC~ 50/60Hz |
| Applied load | Resistance load(min. load: over 5% of rated current) |
| Rated load voltage | 220VAC~ |
| Rated load current | 35A |
| Control input | DC4-20mA, 1-5VDC @(=), External 24VDC @(=), External adjuster (1kΩ), External contact(ON/OFF) |
| Function | Output limit (0 to 100%), Soft Start (0 to 50 sec), Output display, 50/60Hz automAtic recognition |
| Ambient temperature | 0~50℃ |
| Cooling method | Natural cooling |
| Control circuit | Micom control type |
| Environment_Ambient temperature | 0 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85%RH |
| Weight | Approx. 1kg |
※Control type(Phase control, Cycle control (zero cross turn-on)): Refer to ' Control mode selection'.※The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.※The weight includes packaging. The weight in parenthesis is for unit only.
