PSN17-5DP - Rectangular Inductive Proximity Sensors

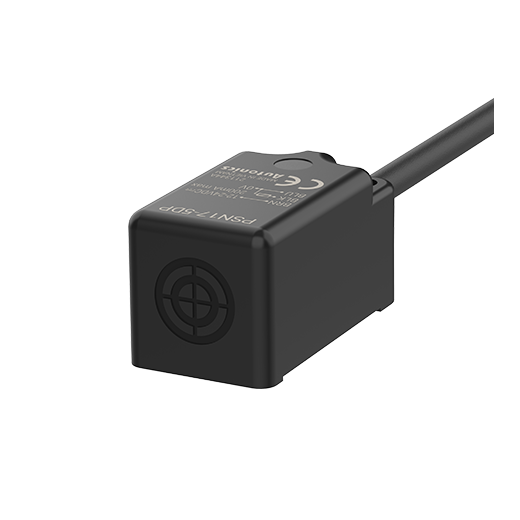

* Image may differ
PSN17-5DP
- Sensing side size : Frame size 17mm
- Sensing distance : 5mm
- Standard sensing target : 18×18×1mm(iron)
- Response frequency : 700Hz
- Current specification : Current consumption: Max. 10mA
Data sheet Print
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
|---|---|
| Sensing side size | Frame size 17mm |
| Sensing distance | 5mm |
| Standard sensing target | 18×18×1mm(iron) |
| Response frequency | 700Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Sensing type | Standard type(front sensing type) |
| Material | Heat-resistant ABS |
| Protection structure | IP67 |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Weight | ≈ 62g (≈ 83g) |
※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.※The weight includes packaging. The weight in parenthesis is for unit only.※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
