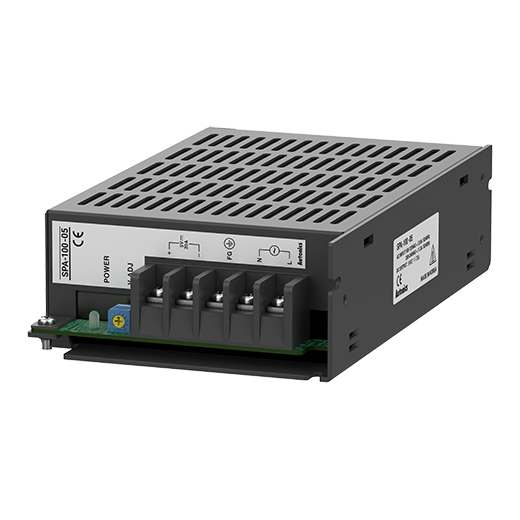

SPA-100-05 - Panel Mount Switching Mode Power Supplies
SPA-100-05
- Output_power : 100W
- Input_Voltage : 100-120/200-240VAC~50/60Hz~
- Permissible voltage : 85-132/170-264VAC~50/60Hz
- Output_Voltage : 5VDC @(=)
- Output_Current : 20A
- Mounting type : Using Bolts
Data sheet Print
Output_power | 100W |
---|---|
Input_Voltage | 100-120/200-240VAC~50/60Hz~ |
Permissible voltage | 85-132/170-264VAC~50/60Hz |
Output_Voltage | 5VDC @(=) |
Output_Current | 20A |
Mounting type | Using Bolts |
Protection | Over-Current,Over-Voltage,Inrush Current,Output Short-Circuit |
Input_Frequency | 50/60Hz |
Input_Efficiency | Min. 70% |
Input_Current consumption | Max. 3.0A |
Output type_Voltage adjustment range | ±5% |
Output_Input fluctuation ratio | Max. ±0.5% |
Output_Load fluctuation ratio | Max. ±2% |
Environment_Ambient temperature | -10 to 50℃, storage: -20 to 70℃ |
Environment_Ambient humidity | 25 to 85%RH, storage: 25 to 90%RH |
Weight | Approx. 400g |
※100% load for rated input voltage (100VAC).※Rated input voltage•SPA-030/050 Series: 100-240VAC (85-264VAC)•SPA-075/100 Series: 100-120/200-240 (85-132/170-264VAC)under 100% of load.SPA-100-05 is under 100% of load for [100-120/200-240VAC (100-132/190-264VAC)].※Rated input voltage (100VAC).※Adjusting voltage by the output voltage adjuster (V.ADJ), it is changed the within voltage adjustment range.※The rated input volatge of SPA-100-05 is 100-120/200-240VAC (100-132/190-264VAC).※Environment resistance is rated at no freezing or condensation.※The weight includes packaging. The weight in parenthesis is for unit only.
3D Viewer
* You can check out the 3D Viewer by the CAD button under the product image.
