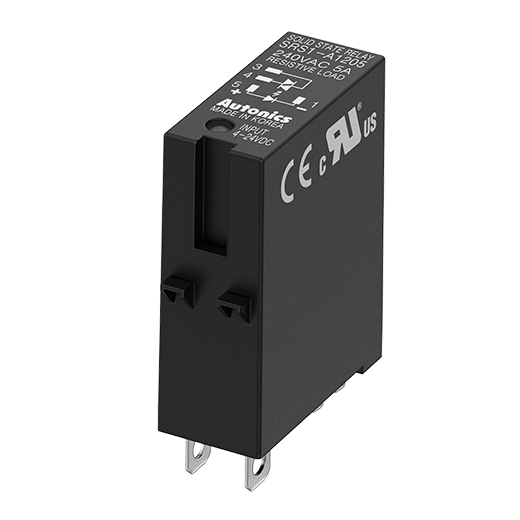

SRS1-A1205 - Single-Phase Solid State Relays (Socket Type)
* Image may differ
SRS1-A1205
- Control phase : Single-phase
- Socket : Autonics Socket SK-G05
- Rated input voltage : 4-24VDC @(=)
- Rated load voltage : 24-240VAC~ (50/60Hz)
- Dielectric strength : 2,500VAC~
- Rated load current : 5A
- Number of output circuits : 1 EA
Data sheet Print
| Control phase | Single-phase |
|---|---|
| Socket | Autonics Socket SK-G05 |
| Rated input voltage | 4-24VDC @(=) |
| Rated load voltage | 24-240VAC~ (50/60Hz) |
| Dielectric strength | 2,500VAC~ |
| Rated load current | 5A |
| Function | Zero cross turn-on |
| Number of output circuits | 1 EA |
| Environment_Ambient temperature | -20 to 70℃, storage: -30 to 100℃(The rated load current capacity is different depending on ambient temperature. Refer to ‘▣ SSR Derating Curve’.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | Approx. 380g(approx. 28g) |
※The weight is per 10 units with packing and the weight of parenthesis is per 1 unit.※Environment resistance is rated at no freezing or condensation.※Rated load current capacity is varied by ambient temperature. Refer to “SSR Derating Curve of Autonics” total catalogue.
