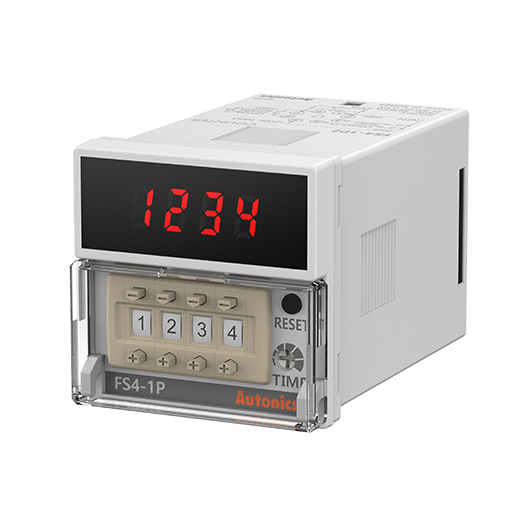

FS4-1P2 - 8-Pin Plug Type Digital Counters
* Image may differ
FS4-1P2
- Display method : 4-digit 7-segment LED
- Operation method : Count up, Count down
- Terminal : 8-pin plug
- Power supply : 24VAC~ 50/60Hz, 24-48VDC @(=)
- External Power Supply : Max. 12VDC @(=) ±10% 50mA
- Control output_Relay : SPST (1a): 1
- Protection structure : IP20(front panel)
Data sheet Print
| Display method | 4-digit 7-segment LED |
|---|---|
| Operation method | Count up, Count down |
| Terminal | 8-pin plug |
| Power supply | 24VAC~ 50/60Hz, 24-48VDC @(=) |
| External Power Supply | Max. 12VDC @(=) ±10% 50mA |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Max. Counting Speed | 1, 30, 2k, 5k [cps] |
| Min. signal Width | 20ms |
| Control output_Type | 1-stage preset |
| Control output_Relay | SPST (1a): 1 |
| Protection structure | IP20(front panel) |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 130g (approx. 90g) |
※Sockets (PG-08, PS-08(N)) are sold separately.※The weight includes packaging. The weight in parenthesis is for unit only.※Environment resistance is rated at no freezing or condensation.
3D Viewer
* You can check out the 3D Viewer by the CAD button under the product image.
PR materials
PR materials can be downloaded without login.
Technical dataView more
3D drawings for each detailed model can be checked and downloaded from the model page at the bottom.
