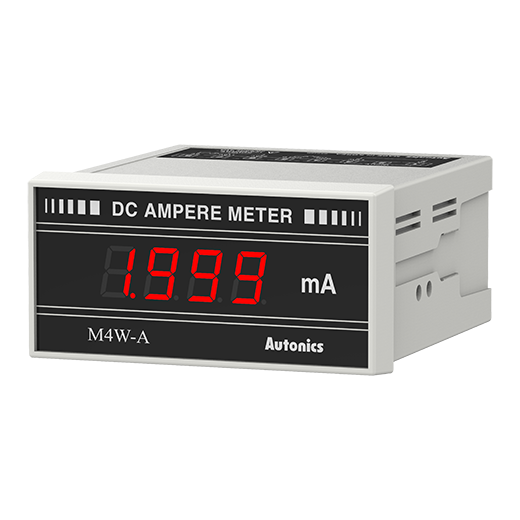

M4W-DA-2 - Digital Ammeters
* Image may differ
M4W-DA-2
- Display method : 3½-digit 7-segment LED
- Character height : 14mm
- Measurement : DC current
- Input specification : 1.999mA
- Max. display Range : 0 to 1.999
- Output : Indicator
Data sheet Print
| Display method | 3½-digit 7-segment LED |
|---|---|
| Character height | 14mm |
| Measurement | DC current |
| Input specification | 1.999mA |
| Max. display Range | 0 to 1.999 |
| Power supply(Option) | 110/220VAC~ 50/60Hz |
| Output | Indicator |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Display accuracy_DC power | F.S. ±0.2% rdg ±1-digit |
| Sampling cycle | 300ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 168g |
※Environment resistance is rated at no freezing or condensation.※The weight includes packaging. The weight in parenthesis is for unit only.
