ASL Series - Solid State Relay Terminal Blocks (Screwless Push-In Type)

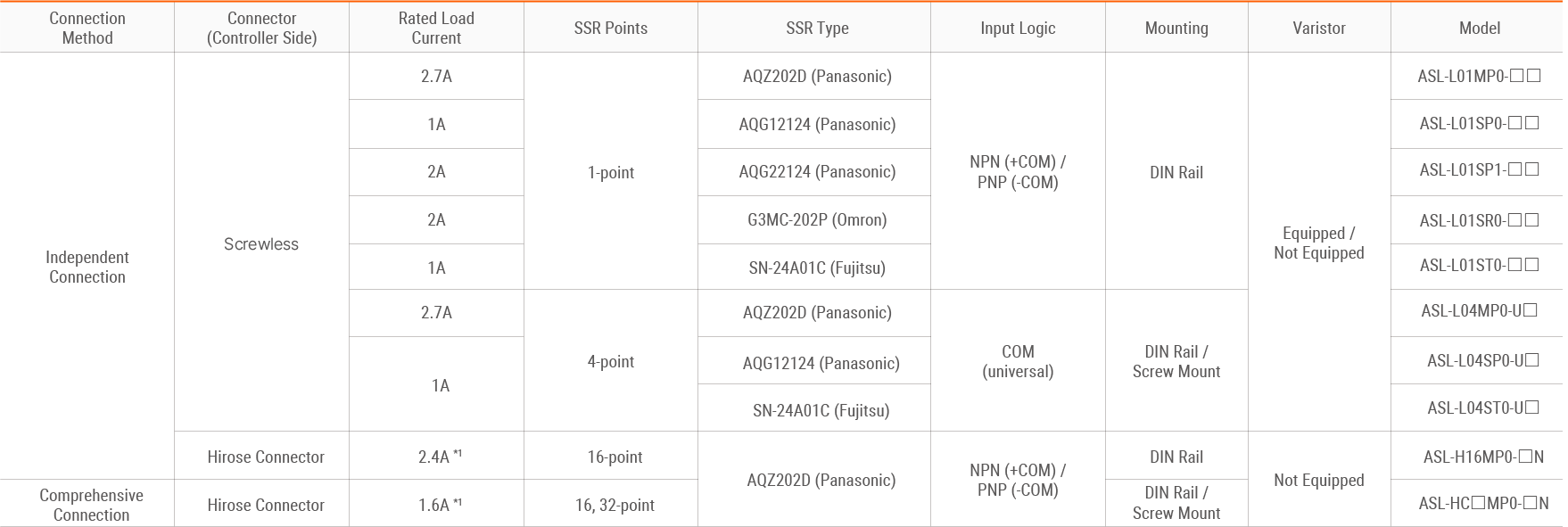

Model

Zoom in

*¹: Use proper current for the ambient temperature. (Refer to the ‘Temperature Characteristic Graph’)

※ Please use the model finder below to find specific models by requirement.
※ Please refer to the cable selection guide to select correct I/O cables.

• Various Lineup for Flexible Application

  The ASL series offer various lineup with diverse relay points, rated load current, input logics models for flexible application.
  Selectable between independent / comprehensive connection for 16-point type



  Zoom in

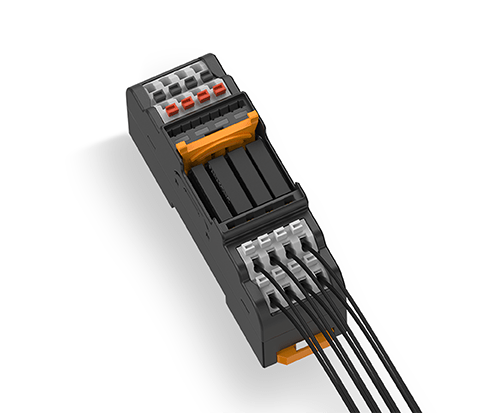

• Easy Wiring and Stable Connection with Screwless Push-in Connection

  The ASL series feature simple screwless push-in type connection providing easy wiring, secure & durable connection, high vibration resistance, reduced installation time, even tightening.



  Zoom in

• Space-saving Design with Slim Size

  The ASL series feature space-saving design with 5 mm* terminal pitch and 2-line relay arrangement for connecting more devices in limited space (comprehensive connection type).
  Available for 4-point type (ASL-L04□-□)



  Zoom in

• Long Life-cycle and High-speed Response

  The ASL series feature contactless relay terminal blocks compensating for wear problem and assuring a long life cycle and high-speed response.



  Zoom in

Switch Between Independent and Load Common Output Using Jumper bar

Switch between independent and load common output options by changing jumper bar location. Provides flexibility for usage in various applications.
Only on independent connection type. (For 16-point type, only Load Common available.)
1-point type can be used when connecting 4 models.

•

  Zoom in

  Independent connection

•

  Zoom in

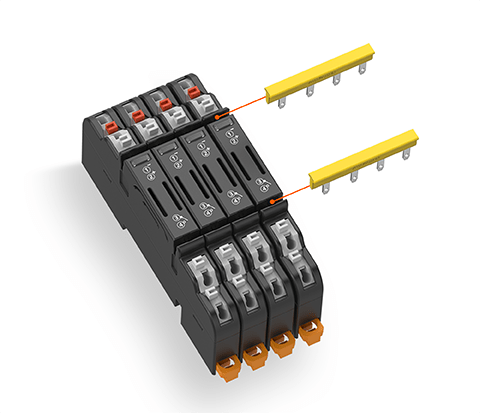

  Common (Using jumper bar)

•

  Zoom in

  Power Common (Top)/ Load Common (Bottom)

Input Selection (NPN, PNP) with Jumper Bar

Switch between NPN (+ COM) and PNP (- COM) input options by changing jumper bar location. Provides flexibility for usage in various applications.
Only on ASL-L04□-□ models

•

  Zoom in

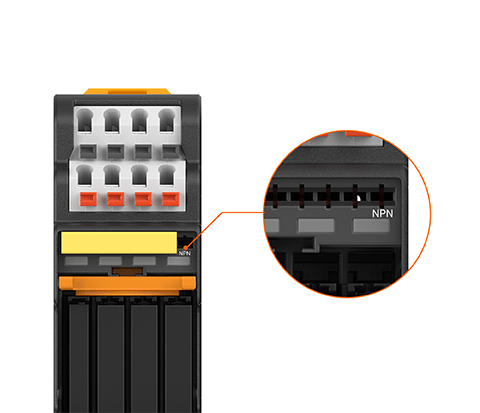

  NPN Common

•

  Zoom in

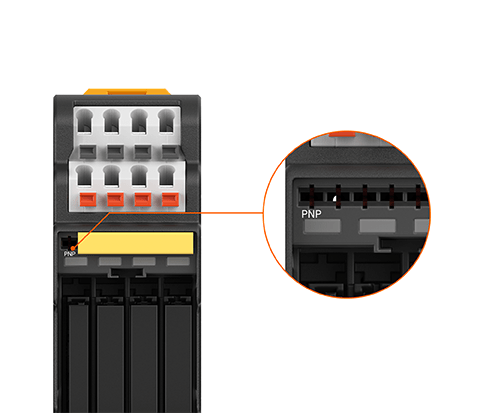

  PNP Common

•

  Zoom in

  ※ Common available when connecting 4 of ASL-L01□-□ models (1-point type)

• Operation Status Indicators

  Blue LED indicators are available to check operation status of each relay.



  Zoom in

• Simple and Convenient Relay Replacement

  Simple and convenient relay replacement is available without any other tools, offering long life-cycle and easy maintenance.
  For 1-point type (ASL-L01□-□), relay replacement is not available.
  Two way ejectors are different by models, please check the components before your purchase.



  Zoom in

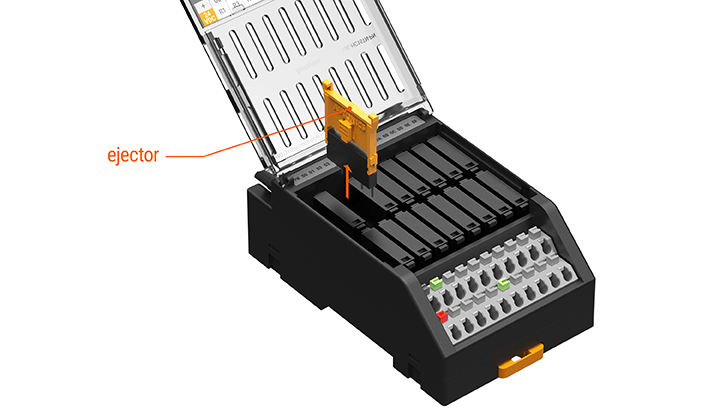

  Easily remove/replace replays with two way ejector clip

Flexible Mounting Methods

The ASL series supports both DIN rail mount and screw mount methods, for application in diverse environments.

•

  Zoom in

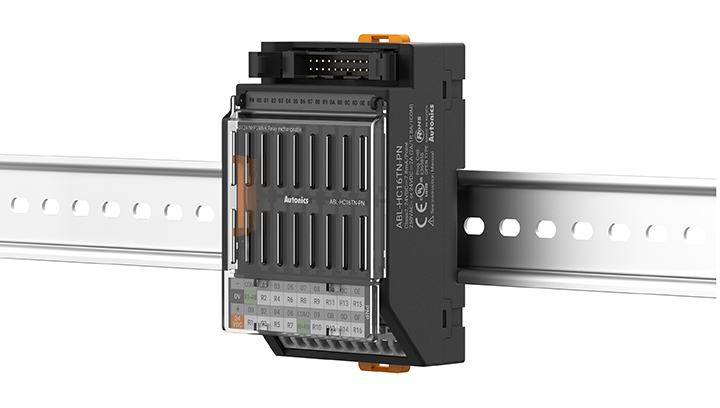

  DIN Rail Mount

•

  Zoom in

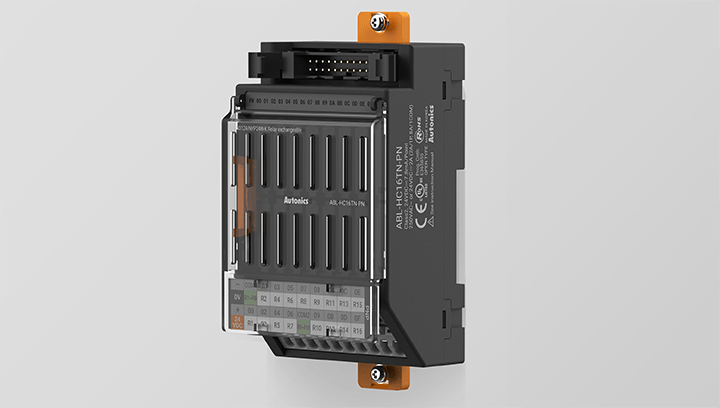

  Screw Mount
  Only on ASL-L04/HC□-□
