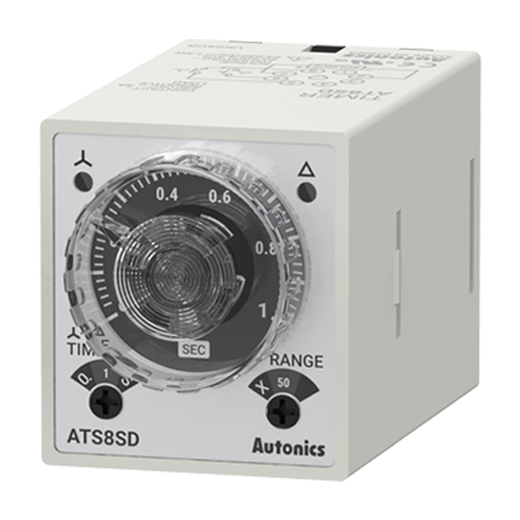

ATS8SD-4 - Compact Star-Delta Analog Timers
* Image may differ
ATS8SD-4
- Operation method : Time setting
- Output Operation : STAR-DELTA
- Time operation : POWER ON START
- Terminal : 8-pin plug
- Power supply : 100-240VAC~50/60Hz, 24-240VDC @(=)
- Control output : STAR contact: SPST (1a): 1, DELTA contact: SPST (1a): 1
Data sheet Print
| Operation method | Time setting |
|---|---|
| Output Operation | STAR-DELTA |
| Time operation | POWER ON START |
| Terminal | 8-pin plug |
| Power supply | 100-240VAC~50/60Hz, 24-240VDC @(=) |
| Setting range | 0.5 to 5 sec, 1 to 10 sec, 5 to 50 sec, 10 to 100 sec |
| Control output | STAR contact: SPST (1a): 1, DELTA contact: SPST (1a): 1 |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85%RH |
| Weight | Approx. 72g |
※Sockets (PG-08, PS-08(N), PS-M8) are sold separately.※Refer to time specifications for control time setting range by model.※The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.※The weight includes packaging. The weight in parenthesis is for unit only.
