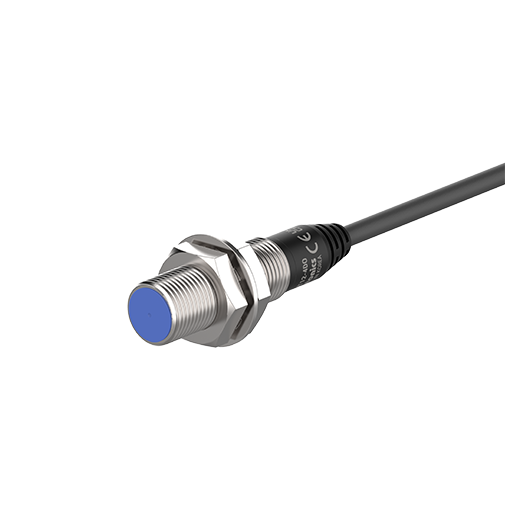

PRD12-4DN - Long-Distance Cylindrical Inductive Proximity Sensors
* Image may differ
PRD12-4DN
- Sensing side diameter : M12
- Sensing distance : 4mm
- Installation : Shield(flush)
- Standard sensing target : 12×12×1mm(iron)
- Response frequency : 500Hz
Data sheet Print
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 4mm |
| Installation | Shield(flush) |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 500Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67 |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | ≈ 62g (≈ 74g) |
※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.※The weight includes packaging. The weight in parenthesis is for unit only.※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
