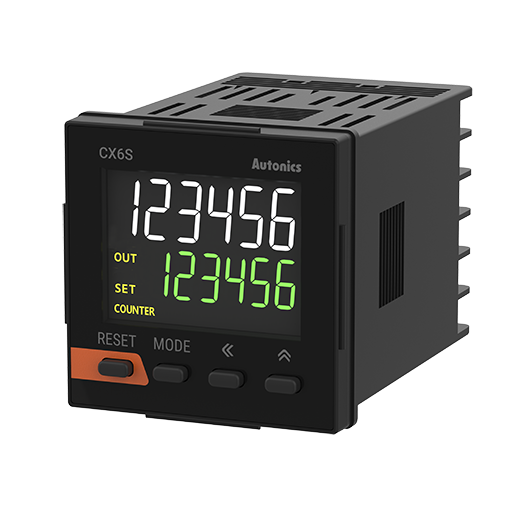

CX6S-1P4 - LCD Display Counter/Timers
* Image may differ
CX6S-1P4
- Display method : Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCDSetting value display part- 6-digit 7-segment LCD
- Operation method : Counter: Count up, Count down, Count up/downTimer: Count up, Count down
- Terminal : Terminal block
- Output Operation : SIGNAL ON DELAY, POWER ON DELAY, ON-OFF DELAY
- Power supply : 100-240VAC~ 50/60Hz
Data sheet Print
| Display method | Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCDSetting value display part- 6-digit 7-segment LCD |
|---|---|
| Operation method | Counter: Count up, Count down, Count up/downTimer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | SIGNAL ON DELAY, POWER ON DELAY, ON-OFF DELAY |
| Power supply | 100-240VAC~ 50/60Hz |
| Time operation | POWER ON STARTSIGNAL ON START |
| External Power Supply | Max. 12VDC @(=) ±10%, 100mA |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Max. Counting Speed | 1, 30, 300, 1k, 5k [cps] |
| Min. signal Width | 1ms/20ms |
| Memory Protection | Approx. 10 years |
| Setting range | 0.001 sec to 999.999 sec, 0.01 sec to 9999.99 sec, 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 1 sec to 9999 min 59 sec, 0.1 min to 99999.9 min, 1 min to 999999 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour |
| Control output_Type | 1-stage preset |
| Control output_Relay | SPDT (1c): 1 |
| Protection structure | IP50(front panel) |
| Counter_Counting range | -99999 to 999999 |
| Counter_Scale | Decimal point up to fifth digit |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 157g(approx. 112g) |
※The weight includes packaging. The weight in parenthesis is for unit only.※Environment resistance is rated at no freezing or condensation.
