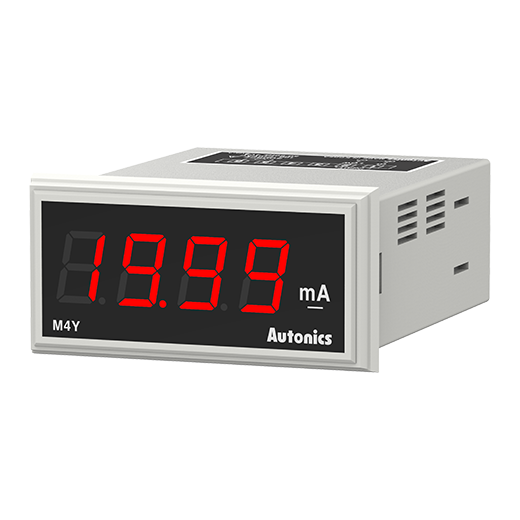

M4Y-DI-XX - Digital Scaling Meter
* Image may differ
M4Y-DI-XX
- Display method : 3½-digit 7-segment LED
- Character height : 14mm
- Measurement : Digital scaling
- Input specification : DC4-20mA(1-5VDC @(=))
- Max. display Range : 0 to 1999
- Output : Indicator
Data sheet Print
| Display method | 3½-digit 7-segment LED |
|---|---|
| Character height | 14mm |
| Measurement | Digital scaling |
| Input specification | DC4-20mA(1-5VDC @(=)) |
| Max. display Range | 0 to 1999 |
| Power supply(Option) | 100-240VAC~ 50/60Hz(24-70VDC @(=)) |
| Output | Indicator |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Display accuracy_DC power | F.S. ±0.2% rdg ±1-digit |
| Sampling cycle | 300ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 144g |
※1-5VDC of measuring input specification is available by option.It will be a default value if there is no request for order.※M4Y, M5W are indicator.※Power supply: It is optional.(customizable)※Environment resistance is rated at no freezing or condensation.※The weight includes packaging. The weight in parenthesis is for unit only.
