ABL Series Relay Terminal Blocks (Screwless Push-In Type)

The ABL series screwless relay terminal blocks are ideal for operating various loads using output signals from PLCs featuring simple and easy connection between circuits. Relay terminal blocks offer space-saving design with 5 mm terminal pitch and stable connection with screwless push-in type for easy maintenance. Users can switch between independent or load common output options and NPN / PNP input options using jumper bars.

View model Downloads Find distributors Add to interested product(s) CAD Download

Applications

PR materials

PR materials can be downloaded without login.

{{result.bbsCtgryNm}}
{{result.nttSj}}

Language selection

Downloads Preview

First Previous Previous {{pg}} Next Next Last

Technical data

All {{ dataPagination.totalRecordCount }}

No search results

First Previous Previous {{pg}} Next Next Last

Search filter Refresh

Search filter
{{result.specNm }} ({{result.detailList.length }})

Please use the model finder to search for products using detailed specifications Model Finder

ABL Series Model ({{modlPagination.totalRecordCount }})

by most recent

Discontinued LINEUP NEW UPGRADE BEST
{{ result.modlNm }}
Compare Add to interested product(s)

No search results

First Previous Previous {{pg}} Next Next Last

Screwless push-in type connection for simple and easy connection
Ideal for operating various loads using output signals from PLCs
Space-saving design with 5 mm terminal pitch and 2-line relay arrangement (comprehensive connection type)
Switch between independent and load common output with jumper bar
Switch between NPN and PNP input with jumper bar (4-point type)
Operation status indicator (blue LED)
DIN rail mount and screw mount installation
Convenient relay removal with ejector clip and release lever (except 1-point type)
Relay protection cover

※ Autonics CH/CO series I/O terminal block cables are recommended for best performance

Switch Between Independent and Common Output
NPN/PNP Input Selection (4-point type)
Slim type
Jumper bar
Wire Ferrule
Screwless Push-In Connection
Operation Indicator
Screw Mount
DIN Rail Mount

Model

Table

Zoom in

Model

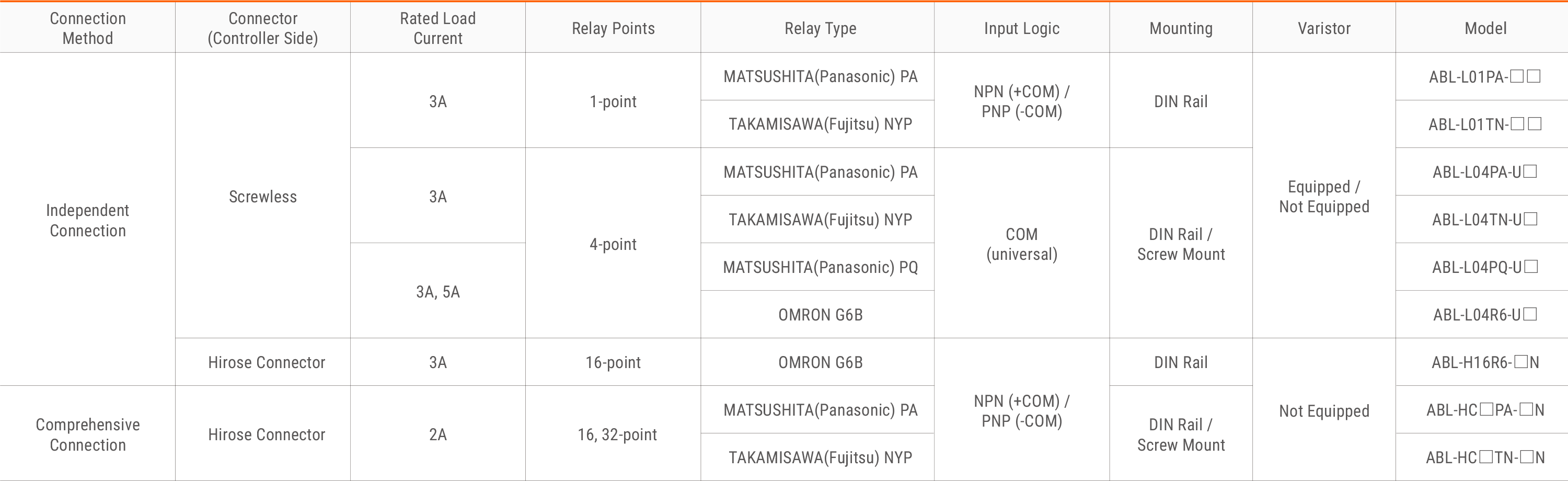

Connection Method	Connector (Controller Side)	Rated Load Current	Relay Points	Relay Type	Input Logic	Mounting Method	Varistor	Model
Independent connection	Screwless	3A	1-Point	MATSUSHITA(Panasonic) PA	NPN(+COM)/ PNP(-COM)	DIN Rail	Equipped/ Not Equipped	ABL-L01PA-□□
		3A	1-Point	TAKAMISAWA(Fujitsu) NYP	NPN(+COM)/ PNP(-COM)	DIN Rail		ABL-L01TN-□□
		3A	4-Point	MATSUSHITA(Panasonic) PA	COM (universal)	DIN Rail/ Screw Mount		ABL-L04PA-U□
		3A		TAKAMISAWA(Fujitsu) NYP				ABL-L04TN-U□
		3A, 5A		MATSUSHITA(Panasonic) PQ				ABL-L04PQ-U□
		3A, 5A		OMRON G6B				ABL-L04R6-U□
	Hirose Connector	3A	16-Point	OMRON G6B	NPN(+COM)/ PNP(-COM)	DIN Rail	Not Equipped	ABL-H16R6-□N
Comprehensive Connection	Hirose Connector	2A	16, 32-Point	MATSUSHITA(Panasonic) PA		DIN Rail/ Screw Mount		ABL-HC□PA-□N
Comprehensive Connection	Hirose Connector	2A	16, 32-Point	TAKAMISAWA(Fujitsu) NYP		DIN Rail/ Screw Mount		ABL-HC□TN-□N

※ Please use the model finder below to find specific models by requirement.
※ Please refer to the cable selection guide to select correct I/O cables.

Various Lineup for Flexible Application

The ABL series offer various lineup with diverse relay points, rated load current, input logics models for flexible application.
Selectable between independent / comprehensive connection for 16-point type

Zoom in
Easy Wiring and Stable Connection with Screwless Push-in Connection

The ABL series feature simple screwless push-in type connection providing easy wiring, secure & durable connection, high vibration resistance, reduced installation time, even tightening.

Zoom in

Space-saving Design with Slim Size

The ABL series feature space-saving design with 5 mm* terminal pitch and 2-line relay arrangement for connecting more devices in limited space (comprehensive connection type).
Available for 4-point type (ABL-L04PA/TN-□)

Zoom in

Switch Between Independent and Load Common Output Using Jumper bar

Switch between independent and load common output options by changing jumper bar location. Provides flexibility for usage in various applications
Only on independent connection type. (For 16-point type, only Load Common available.)
1-point type can be used when connecting 4 models.

Zoom in

Independent connection
Zoom in

Common (Using jumper bar)
Zoom in

Power Common (Top)/ Load Common (Bottom)

Input Selection (NPN, PNP) with Jumper Bar

Switch between NPN (+ COM) and PNP (- COM) input options by changing jumper bar location. Provides flexibility for usage in various applications.
Only on ABL-L04□-□ model

Zoom in

NPN Common
Zoom in

PNP Common
Zoom in

※ Common available when connecting 4 of ABL-L01□-□ models (1-point type)

Operation Status Indicators

Blue LED indicators are available to check operation status of each relay.

Zoom in

4-point type
Zoom in

16-point type

Flexible Mounting Methods

The ABL series supports both DIN rail mount and screw mount methods, for application in diverse environments.

Zoom in

DIN Rail Mount
Zoom in

Screw Mount
 Only on ABL-L04/HC□-□ model

Simple and Convenient Relay Replacement

Simple and convenient relay replacement is available without any other tools, offering long life-cycle and easy maintenance.
For 1-point type (ABL-L01□-□), relay replacement is not available.
Two way ejectors are different by models, please check the components before your purchase.

Zoom in

Easily remove/replace relays with relay release lever
Zoom in

Easily remove/replace replays with two way ejector clip
