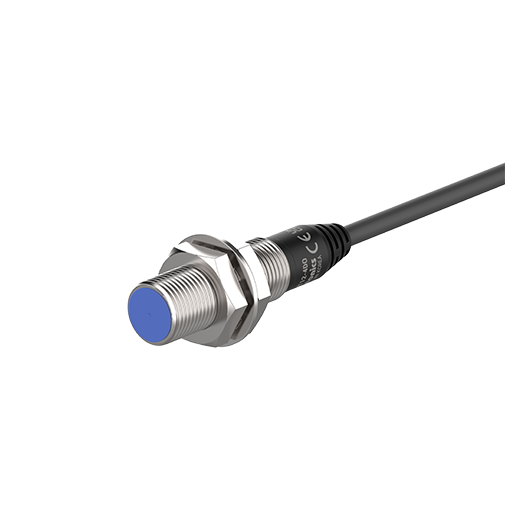

PRDT12-4XO - Proximity Sensor Induktif Silindris Deteksi Jarak Jauh
*Gambar mungkin dapat berbeda
PRDT12-4XO
- Diameter sisi sensing : M12
- Jarak deteksi : 4mm
- Instalasi : Shield(flush)
- Target sensing standar : 12×12×1mm(iron)
- Frekuensi respon : 450Hz
Data sheet Cetak
| Tipe kabel dan daya | Tipe DC 2-wire 12-24VDC @(=) |
|---|---|
| Diameter sisi sensing | M12 |
| Jarak deteksi | 4mm |
| Instalasi | Shield(flush) |
| Target sensing standar | 12×12×1mm(iron) |
| Frekuensi respon | 450Hz |
| spesifikasi arus | Kebocoran arus: 0.6mA |
| Output kontrol | Normally Open |
| Material | Brass(nickel plated) |
| Material/ standar kabel | Kabel standar |
| Tingkat proteksi | IP67 |
| Non-polaritas | Non-Polaritas |
| Panjang bodi | Tipe standar |
| Lingkungan_kadar suhu | -25 hingga 70℃, ruangan tertutup: -30 hingga 80℃ |
| Lingkungan_kadar kelembaban | 35 hingga 95% RH, ruangan tertutup: 35 hingga 95% RH |
| Histeresis (jarak) | Maks. 10% jarak sensing |
| Tegangan residu | Maks. 5V |
| Berat | ≈ 62g (≈ 74g) |
※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.※Before using non-polarity type, check the condition of connected divice because residual voltage is 5V.※The weight includes packaging. The weight in parenthesis is for unit only.※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
